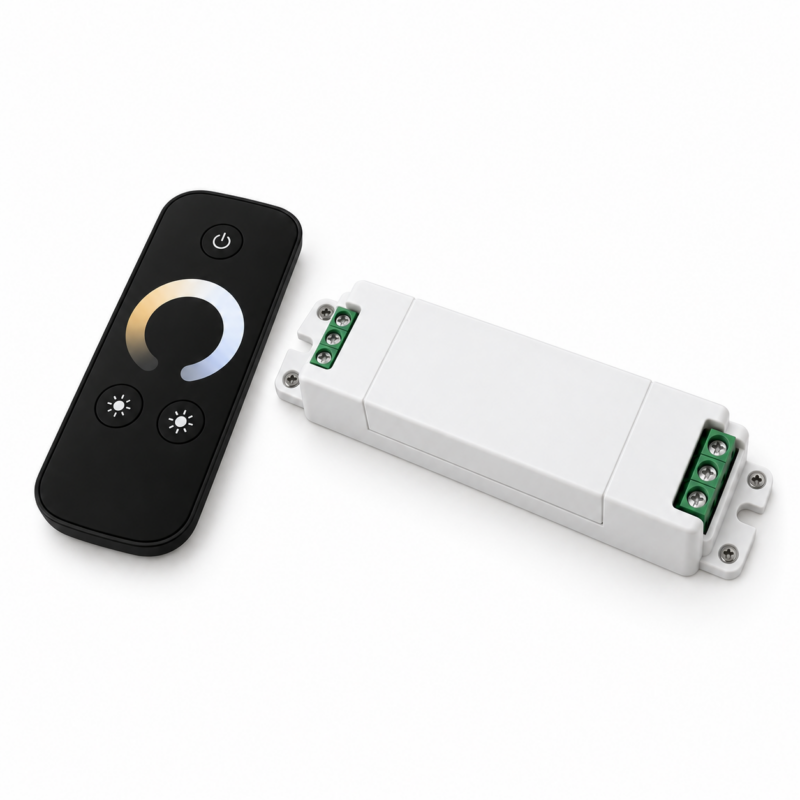

Coming soonRF Single Colour Controller
β
12β24V DC
β
1 Channel
β
RF
β
Single Colour
Original price was: £10.00.£8.00Current price is: £8.00.
Reliable RF single-colour LED controller designed for smooth, responsive control of 24V constant-voltage lighting. The single-channel PWM output supports loads up to 12A and 288W, providing precise 0β100% dimming for compatible single-colour LED installations.
In Stock
Order before 2pm on a working day for same-day dispatch.
Estimated Delivery
Standard Delivery
Nov 13 - Nov 17
Express Delivery
Nov 13 (Next Day)
Free delivery on orders over Β£50
- 7 Year Warranty
- 30 Day Returns
- UK Stock
Technical Specifications
Complete technical details for professional installation
Input Voltage
24V DC
Output Type
Constant Voltage PWM
Channels
1 Channel
Max Current
12A
Max Output
288W @ 24V
Control Protocol
RF
Colour Type
Single Colour
Dimming Range
0β100%
IP Rating
IP20
Working Temperature
-10Β°C to +40Β°C*
Installation Note
Requires a compatible 24V DC constant-voltage power supply. Ensure the connected LED load does not exceed the controller's maximum 12A current or 288W output rating. Designed for IP20 indoor installations.
Key Features & Benefits
What makes this product exceptional
RF Wireless Control
Smooth 0β100% Dimming
12A Maximum Current
Up to 288W Output at 24V
Single-Channel PWM Control
Single Colour LED Compatibility
Why Choose One LED?
7 Year Warranty
Industry-leading protection
Fast Delivery
Same-day dispatch available
Premium Quality
Professional-grade LEDs
7 Year Warranty
Industry-leading protection for your investment
We stand behind the quality of our LED products with one of the longest warranties in the industry. Your satisfaction and peace of mind are our top priorities.
What's Covered
Manufacturing Defects
Full coverage for any manufacturing issues or material defects
LED Failure
Protection against LED failures under normal operating conditions
Colour Consistency
Coverage for colour shifts beyond acceptable industry parameters
Component Failures
Includes drivers and all electrical components
Warranty Conditions
- Product must be installed according to our installation guidelines
- Must be used with compatible LED drivers within specified voltage parameters
- Product must not be exposed to conditions beyond its rated IP rating
- Valid proof of purchase required for all warranty claims
Need to Make a Warranty Claim?
Our support team is here to help you every step of the way
Product Documents
Download technical documentation and certifications
Declaration of Conformity
CE marking and compliance documentation
Coming soonUser Manual
Installation guide and safety instructions
Coming soonDocument Information
All documents are provided in PDF format. For specific technical queries or custom specifications, please contact our technical team.
